| 产品展示 |
 |
|
|
|
|
|
 |
| |
|
| |
| 机械式蜂鸣器 >> SLJ-260180F-06004-W |
 |
|
| 产品型号： |
SLJ-260180F-06004-W |
| 规格说明： |
| Resonant Frequency (Hz) |
400 |
| Operating Voltage (Vp-p/max) |
3.0~7.0 |
| Rated Voltage (Vp-p) |
6.0 |
| Current Consumption (mA/max) |
35 |
| Sound Pressure Level at 10cm(dB/min) |
83 |
| Coil Resistance |
|
| Case material and colour |
ABS/Black |
| Weight (g) |
12.0 |
| Dimension (mm) See appearance drawing |
Ø26.0 x H17.7 |
| Operating Temperature (℃) |
-20 ~ +60 |
| Storage Temperature (℃) |
-30 ~ +70 |
| *Applying rated voltage (Resonant frequency, 1/2 duty, Square wave) | |
| 尺寸图： |
|

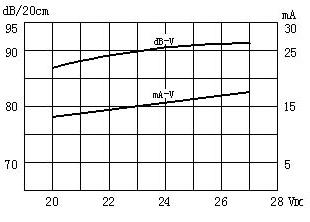

| 曲线图： |
|
|
