| 产品展示 |
 |
|
|
|
|
|
 |
| |
|
| |
| SMD蜂鸣器 >> SMD电磁无源蜂鸣器 >> SMD-14035F-05027 |
 |
|
| 产品型号： |
SMD-14035F-05027 |
| 规格说明： |
| Resonant Frequency (Hz) |
2700 ±300 |
| Operating Voltage (Vp-p/max) |
3.0 ~ 7.0 |
| Rated Voltage (Vp-p) |
5.0 |
| Current Consumption (mA/max) |
90 |
| Sound Pressure Level at 10cm(dB/min) |
88 |
| Coil Resistance (Ω) |
30 ±5 |
| Dimension(mm) |
14.0 x 11.0 x H3.5 |
| Case material and colour |
LCP( Black ) |
| Weight (g) |
1.0 |
| Operating Temperature (℃) |
-25 ~ +70 |
| Storage Temperature (℃) |
-30 ~ +80 |
| *Applying rated voltage (Resonant frequency, 1/2 duty, Square wave) | |

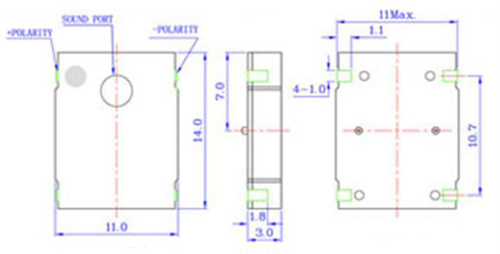

| 尺寸图： |
|

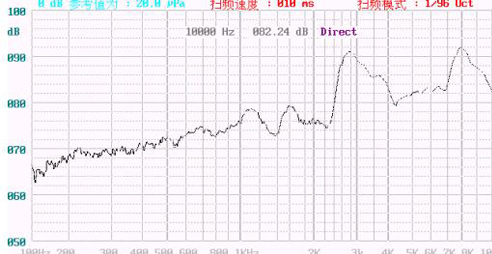

| 曲线图： |
|
|
